Cooper Menvier CAP320 Intelligent Addressable Optical Smoke Sensor
Overview
The CAP320 is an intelligent addressable optical smoke sensor from Eaton (Cooper Menvier) designed for use with the DF6000 analogue addressable fire system. It delivers rapid detection of slow-burning or smouldering fires that produce visible smoke. The device features soft addressing, a 360° LED indicator, a sleek low-profile design, and compatibility with EN54 standards.
Specifications
Here are the key technical details:
Detection Principle: Optical (photoelectric) designed for visible smoke detection
Addressing: Soft (auto) addressing; single address, integral short-circuit isolator
Voltage: 18 V DC to 30 V DC
Current: Standby current max 220 µA; alarm current max 5 mA
Environmental: Operating temperature –10 °C to +60 °C; humidity 0–95% RH non-condensing
Physical Dimensions: Diameter approx. 104 mm × depth 45 mm (incl. base), without base weight ~76 g
LED Indicator: 360° visibility via light-pipe technology
Standards Compliance: EN54-7 (smoke detector) and EN54-17 (short-circuit isolator) certified
Mounting: Ceiling in open areas using CAB300 base; IP30 rating
Compatible System: Works with Eaton Cooper intelligent addressable fire systems
Features and Benefits
Features
Soft Addressing for automatic configuration
Integral Short-Circuit Isolator for loop resilience
Single Address simplifies system integration
360° LED Visibility through lightpipe technology
Drift Compensation ensures long-term reliability
Removable Detector Chamber eases maintenance
Aesthetic, Low-Profile Design blends into interiors
Benefits
Quick and Easy Installation with minimal configuration
Reliable Detection of smouldering fires thanks to optical sensing
Robust System Performance even in short-circuit scenarios
High Visibility Alerting from any direction in the room
Maintenance Friendly—chamber removal simplifies cleaning
Versatile and Seamlessly Integrated within Cooper Eaton systems
Discrete Integration into décor for unobtrusive placement
Simplex TrueAlarm Photoelectric Smoke Detector
Overview
The Simplex TrueAlarm Photoelectric Smoke Detector (model 4098-9714) employs a pulsed infrared LED and silicon photodiode to deliver precise, low-power smoke detection. It offers seven user-selectable sensitivity levels (0.2–3.7% obscuration per foot), 360° smoke entry, and insect-screen protection. Compatible with Simplex IDNet/MAPNET II systems and advanced fire panels.
Specifications
| Specification | Details |
|---|---|
| Detection Method | Photoelectric (pulsed infrared LED & silicon photodiode) |
| Sensitivity Levels | Seven levels: 0.2% to 3.7% per foot obscuration |
| Smoke Entry Design | 360° entry design; insect screen included |
| Compatibility | Works with Simplex 4007ES, 4010, 4010ES, 4100ES, 4100U, 4008, 4020, 4210 panels, and 2120 TrueAlarm CDTs |
| Communication | IDNet or MAPNET II two-wire addressable communications |
| Advanced Panel Features | Sensitivity logging, NFPA-72 compliance, auto drift compensation, multi-stage alarms, plain-English sensor info |
| Certifications & Mounting | UL-268, ULC-S529 listed; ceiling or wall mount; EMI-compatible; magnetic test; remote LED bases available |
| Dimensions & Weight | Approximately 4 × 4 × 2 inches; weight ≈ 0.025 lb |
Features and Benefits
Key Features
TrueAlarm analog sensing allows precise, low-power smoke detection.
Selectable sensitivity levels, from 0.2% to 3.7% per foot, tailored to varied environments.
360° smoke entry with insect screen ensures comprehensive detection and long-term reliability.
Smart panel integration: offers logging, sensitivity monitoring, environmental compensation, and readable diagnostics.
Flexible installation with magnetic testing, remote LED capability, and EMI-hardened design.
Wide compatibility across many Simplex fire alarm control panels makes it versatile and future-proof.
Benefits
Reliable detection precision helps reduce false alarms and maintain performance over time.
Customizable sensitivity enables adaptation to spaces with different risk levels or contamination.
Efficient maintenance via magnetic test function and drift compensation alerts – lowers false positives from dust/build-up.
High situational awareness thanks to 360° detection and insect-resistant design.
Seamless system integration with logging and diagnostics supports faster response and inspection.
Versatility in deployment for both ceiling and wall mounting and compatibility with many Simplex panels simplifies installations.

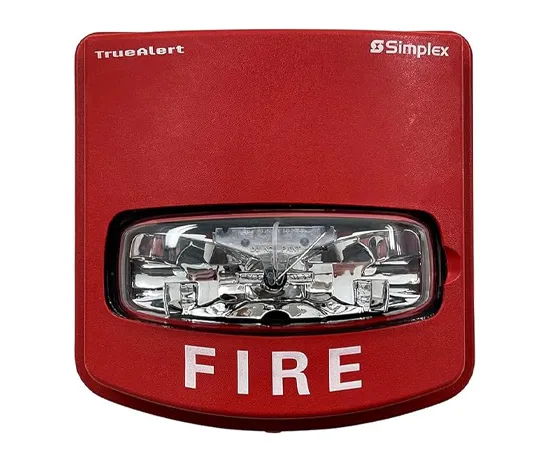

Simplex 4906-9105 Wall Mount Strobe Weatherproof
Overview
The Simplex 4906-9105 is a weatherproof, wall-mount strobe designed for reliable visual fire alarm signaling in both indoor and outdoor environments. Engineered for harsh conditions, it features a rugged enclosure, high-intensity xenon flash, and compliance with key safety standards, ensuring dependable performance for life safety systems in all weather conditions.
Specifications
Type: Wall-mount visual notification appliance (strobe)
Light Source: High-intensity xenon strobe
Weatherproof Rating: NEMA 4X / IP66 rated enclosure
Operating Voltage: 16–33 VDC (filtered or unfiltered)
Flash Rate: 1 Hz (one flash per second)
Candela Options: Selectable output (e.g., 15, 30, 75, 110 cd depending on model setting)
Synchronization: Compatible with Simplex sync protocols
Lens Color: Clear (over red or white housing)
Mounting: Surface mount on compatible back box
Temperature Range: –35 °C to +66 °C (–31 °F to +151 °F)
Compliance: UL 1638, UL 1971, ULC listed, meets ADA and NFPA 72 requirements
Features and Benefits
Features
Rugged, weatherproof design for indoor/outdoor use
High-intensity xenon flash for clear, visible alerts
Selectable candela settings for application flexibility
Fully synchronized flash when used with Simplex control modules
UV-stabilized housing to prevent fading in sunlight
Easy surface-mount installation with compatible back box
NEMA 4X / IP66 rated for dust and water protection
Benefits
Delivers reliable visual notification in extreme weather and harsh environments
Adjustable light output to suit varying space sizes and requirements
Maintains system-wide synchronization to prevent confusion during alarms
Long service life and minimal maintenance needs due to sealed, durable construction
Meets key regulatory requirements for accessibility and safety compliance
Simplex UL Listed Fire Alarm System equipment
Overview
Simplex UL Listed fire alarm system equipment delivers high-reliability life safety solutions for commercial, industrial, and institutional facilities. Designed to meet stringent UL standards, the range includes intelligent control panels, detectors, notification appliances, and accessories—ensuring dependable fire detection, signaling, and evacuation guidance.
Specifications
Compliance: UL 864 (Control Units), UL 268 (Smoke Detectors), UL 1971 (Visual Notification), UL 464 (Audible Signaling)
System Types: Addressable, conventional, and hybrid fire alarm systems
Operating Voltage: Typically 24 VDC for devices; panels may accept 120/240 VAC
Notification Appliances: Strobes, horns, horn/strobes, speakers, speaker/strobes
Detection Devices: Photoelectric smoke detectors, heat detectors, multi-sensors, duct detectors
Enclosures: NEMA-rated for specific weatherproof or hazardous applications
Mounting: Wall, ceiling, or panel rack as per device type
Integration: Compatible with emergency voice/alarm communication systems
Environmental: Temperature and humidity ranges vary per device; available in indoor and outdoor-rated models
Features and Benefits
Features
Wide portfolio covering detection, control, and notification
Intelligent addressable technology for pinpoint device monitoring
UL Listed to meet strict safety and performance standards
Synchronization capabilities for strobes and horns
Modular system architecture for easy expansion
Voice evacuation integration for large facilities
Weatherproof and hazardous-location options
Benefits
Ensures regulatory compliance and safety assurance
Reliable and accurate detection minimizes false alarms
Flexible configurations to suit buildings of all sizes
Clear, coordinated audible and visual alerts improve evacuation efficiency
Scalable solutions protect long-term investments
Durable construction ensures dependable operation in varied environments

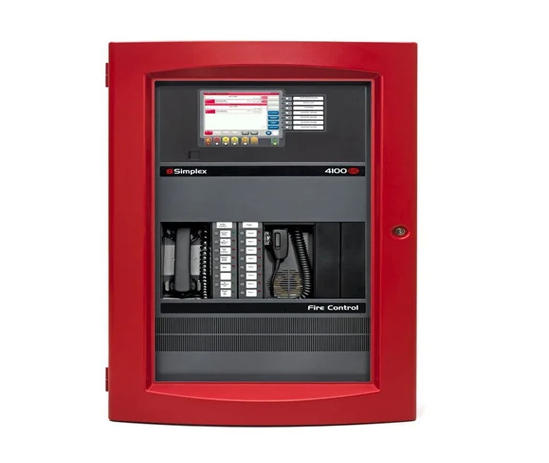

Simplex 4100 Es Fire Alarm Control Panel
Overview
The Simplex 4100ES Fire Alarm Control Panel is a fully modular, networkable, UL-listed life safety system designed for medium to large facilities. Offering advanced addressable detection, voice evacuation, integrated networking, and scalable expansion, it delivers precise fire detection, flexible configuration, and reliable emergency communication in compliance with NFPA and UL standards.
Specifications
Type: Intelligent addressable fire alarm control panel
Compliance: UL 864, NFPA 72, ADA, ULC-S527
Capacity: Supports thousands of addressable points depending on configuration
Detection Protocol: IDNet addressable device communication
Power Supply: 120/240 VAC primary; 24 VDC system voltage
Display: Large backlit LCD touchscreen or keypad interface
Networking: Built-in ES Net for high-speed panel-to-panel communication
Audio/Voice: Integrated voice evacuation, multi-channel audio, and message storage
Expansion: Modular bays for additional power supplies, IDNet channels, audio amplifiers, or networking cards
Compatible Devices: TrueAlarm smoke detectors, heat detectors, manual pull stations, notification appliances, and modules
Environmental: 32 °F to 120 °F (0 °C to 49 °C), 0–93% RH non-condensing
Mounting: Wall-mounted cabinet or rack enclosure
Features and Benefits
Features
Modular design for scalable configurations
Supports IDNet addressable devices with diagnostics
Integrated emergency voice/alarm communications
Built-in networking for multi-panel systems
Advanced operator interface with touchscreen display
Supports multiple audio channels for zoned evacuation
Programmable logic and custom control sequences
Historical event log with large storage capacity
Benefits
Flexible expansion accommodates future building growth
High-speed network ensures fast, reliable alarm transmission
Clear, targeted emergency messaging improves evacuation efficiency
Easy-to-use operator interface reduces training time
Precise device-level monitoring enhances maintenance and troubleshooting
Meets modern safety codes for a wide range of building types
Long-term investment protection through modular upgrades
Simplex TrueAlarm Addressable Pull Stations
Overview
The Simplex TrueAlarm Addressable Pull Stations are reliable, easy-to-use manual fire alarm activation devices designed for quick emergency response. With addressable technology, they provide precise location reporting to the fire alarm control panel, ensuring rapid identification of the activation point. Their robust construction and ADA-compliant design make them ideal for commercial, institutional, and industrial facilities.
Specifications
Type: Addressable manual pull station
Compatibility: TrueAlarm and Simplex addressable systems
Mounting: Surface or semi-flush
Operation: Single or dual action
Compliance: ADA, NFPA, UL listed
Reset: Key-operated reset mechanism
Housing Material: Durable, high-impact resistant plastic
Features and Benefits
Accurate Addressing: Pinpoints activation location for faster response
Durable Design: Built to withstand demanding environments
ADA-Compliant: Accessible for all occupants
Flexible Installation: Surface or semi-flush mounting options
Easy Reset: Key-reset feature reduces downtime after activation
Enhanced Safety: Integrates seamlessly with addressable fire alarm systems
Diesel Engine Driven Fire Pump Control Panel
Overview
The Diesel Engine Driven Fire Pump Control Panel is a robust, NFPA-compliant control solution designed to start, monitor, and protect diesel-driven fire pumps in emergency situations. Built with durable components, it ensures reliable operation under demanding conditions, providing manual and automatic control, system monitoring, and fault indication for fire protection systems.
Specifications
Compliance: NFPA 20 & UL Listed components
Power Supply: 12V or 24V DC battery systems
Enclosure: NEMA-rated, corrosion-resistant
Control Modes: Manual and automatic start
Monitoring: Engine RPM, oil pressure, coolant temperature, battery voltage, and charger status
Protection: Low oil pressure, high water temperature, over-speed shutdown
Indicators: System status LEDs and alarms
Features and Benefits
Reliable Start-Up: Ensures quick pump activation during emergencies.
Comprehensive Monitoring: Tracks key engine parameters for operational safety.
Durable Construction: NEMA-rated enclosure protects against harsh environments.
Fail-Safe Protection: Automatic shutdown on critical faults to prevent damage.
Easy Operation: User-friendly interface with clear status indicators.
Naffco Fire Door 4 × 8
Overview
The Naffco Fire Door 4 × 8 Feet is engineered for superior fire protection and safety compliance in commercial, industrial, and residential applications. Built with high-quality fire-resistant materials, it prevents the spread of fire and smoke for a specified duration, ensuring safe evacuation and property protection. Designed for durability, it meets global fire safety standards.
Specifications
Dimensions: 4 × 8 feet
Material: Galvanized steel or timber with fire-rated core
Fire Rating: Up to 120 minutes (customizable)
Finish: Powder-coated / painted finish
Hardware: Fire-rated hinges, locks, and handles
Compliance: Certified to international fire safety standards
Usage: Interior or exterior installation
Features and Benefits
High Fire Resistance: Effectively contains fire and smoke for extended periods
Durable Construction: Long-lasting performance under heavy use
Customizable Options: Various finishes, vision panels, and hardware choices
Safety Assurance: Certified to meet international codes and standards
Versatile Application: Suitable for offices, hospitals, factories, and residential complexes
Naffco Fire Door 6 × 8 Feet
Overview
The Naffco Fire Door 6 × 8 Feet is a high-performance fire-rated door designed to provide superior protection in the event of a fire. Built from robust materials and tested to international fire safety standards, it ensures reliable compartmentalization, helping prevent the spread of flames and smoke. Suitable for commercial, industrial, and residential applications, this door combines safety, durability, and a clean finish.
Specifications
Dimensions: 6 ft × 8 ft
Fire Rating: Up to 120 minutes (depending on configuration)
Material: Galvanized steel / Timber core (varies by model)
Finish: Powder-coated or primed for paint
Hardware: Fire-rated hinges, closers, and panic hardware (optional)
Compliance: Tested and certified to NFPA, BS, and UL standards
Features and Benefits
Exceptional Fire Resistance: Protects life and property by containing fire and smoke.
Durable Construction: Designed to withstand heavy use in high-traffic areas.
Customizable Finish: Can be powder-coated or painted to match any interior design.
Easy Operation: Smooth opening and closing with fire-rated hardware.
Versatile Application: Ideal for offices, warehouses, malls, hospitals, and more.
Fire Pump Control Panel
Overview
A Fire Pump Control Panel is a critical component in fire protection systems, designed to automatically start, control, and monitor fire pump operation during emergencies. It ensures reliable water supply to sprinkler and standpipe systems, protects the pump from faults, and provides status indications to maintenance personnel, enhancing building safety and compliance with NFPA standards.
Specifications
Type: Fire pump control panel (electric or diesel driven)
Compliance: NFPA 20, UL listed components
Power Supply: 120/240V AC input; 24V DC battery backup
Control Modes: Automatic, manual, and test operation
Monitoring: Pump status, pressure, motor running, low suction, and fault conditions
Indicators: LED or LCD display for system status and alarms
Protection: Overload, short circuit, low oil pressure (diesel pumps), and high temperature
Mounting: Wall-mounted or freestanding cabinet
Features and Benefits
Reliable Operation: Ensures rapid activation of fire pumps during emergencies
Comprehensive Monitoring: Tracks critical pump and system parameters
User-Friendly Interface: Easy-to-read indicators and alarms for operators
Fail-Safe Protection: Prevents damage to the pump with automatic fault detection
Code Compliance: Meets NFPA and UL standards for life safety systems
Flexible Installation: Suitable for electric and diesel pump configurations
Naffco Electric Fire Pump Controllers
Overview
Naffco Electric Fire Pump Controllers are designed to provide reliable control, protection, and monitoring of electric-driven fire pumps. Engineered for automatic and manual operation, they ensure a consistent water supply to sprinkler and standpipe systems during emergencies. With robust construction and compliance with NFPA standards, these controllers enhance safety and operational efficiency in commercial, industrial, and institutional buildings.
Specifications
Type: Electric Fire Pump Controller
Compliance: NFPA 20, UL/ULC listed components
Power Supply: 3-phase, 208–480V AC (depending on pump size)
Control Modes: Automatic start, manual start, and test mode
Monitoring: Pump running, pump failure, phase loss, voltage, current, and alarms
Indicators: LED/LCD display for status and fault conditions
Protection: Overload, short-circuit, under-voltage, and phase failure
Mounting: Wall-mounted or freestanding cabinet
Enclosure: NEMA-rated for indoor or outdoor installations
Features and Benefits
Reliable Activation: Ensures immediate pump operation in case of fire
Comprehensive Monitoring: Keeps track of all critical pump and system parameters
User-Friendly Interface: Easy-to-read indicators and alarms for operators
Fail-Safe Protection: Prevents electrical faults and pump damage
Compliance: Meets NFPA, UL, and local fire safety standards
Durable Construction: Robust panels suitable for industrial and commercial environments
Flexible Installation: Supports various pump sizes and configurations
NAFFCO Diesel Engine
Overview
The NAFFCO Diesel Engine is a robust power source designed to drive fire pump systems for reliable water supply during emergencies. Built for high performance and durability, it ensures continuous operation under demanding conditions. Its precision engineering and compliance with fire safety standards make it ideal for commercial, industrial, and institutional fire protection applications.
Specifications
Type: Diesel engine for fire pump systems
Power Output: Varies by model, typically 50–500 HP
Fuel Type: Diesel
Cooling: Water-cooled
Starting System: Electric start with battery backup
Monitoring: Oil pressure, coolant temperature, RPM, and battery voltage
Enclosure: Weather-resistant for outdoor installation
Compliance: NFPA 20 and other relevant fire safety standards
Mounting: Base-mounted with vibration isolators
Features and Benefits
Reliable Performance: Ensures continuous operation during fire emergencies
Durable Construction: Built to withstand harsh industrial environments
Comprehensive Monitoring: Protects engine from faults with real-time status indicators
Easy Maintenance: Accessible design for servicing and inspections
Compliance: Meets NFPA and other fire safety codes
Versatile Installation: Suitable for indoor and outdoor fire pump applications

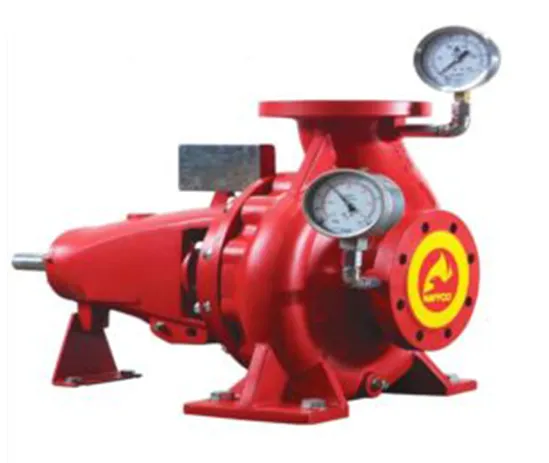

NAFFCO Fire Pump
Overview
The NAFFCO Fire Pump is a high-performance solution designed to supply reliable water flow to sprinkler and standpipe systems during emergencies. Engineered for durability and compliance with NFPA standards, it ensures rapid response and continuous operation. Suitable for commercial, industrial, and institutional facilities, the pump can be driven by electric or diesel engines for flexible fire protection solutions.
Specifications
Type: Electric or Diesel-driven fire pump
Flow Rate: Varies by model (commonly 500–5000 GPM)
Pressure: 50–250 PSI depending on application
Compliance: NFPA 20, UL/ULC listed components
Materials: Cast iron pump body with bronze or stainless steel impellers
Connections: Flanged suction and discharge
Operation: Automatic or manual start via fire pump controller
Temperature Range: –20°C to 60°C (–4°F to 140°F)
Features and Benefits
Reliable Water Supply: Ensures continuous firefighting capability
Versatile Drive Options: Electric or diesel engines for different applications
Durable Construction: Corrosion-resistant materials for long life
NFPA Compliant: Meets international fire protection standards
Flexible Installation: Suitable for indoor or outdoor setups
Easy Maintenance: Accessible design simplifies servicing and inspections

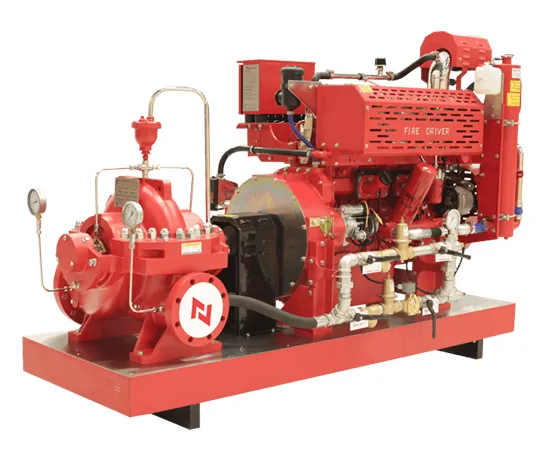

NAFFCO Horizontal Split Case Fire Pump
Overview
The NAFFCO Horizontal Split Case Fire Pump is a reliable, high-performance pump designed for fire protection systems. Its horizontal split-case design ensures smooth operation, easy maintenance, and optimal hydraulic efficiency. Suitable for commercial, industrial, and institutional applications, it provides a dependable water supply to sprinkler and standpipe systems, meeting NFPA standards for safety and performance.
Specifications
Type: Horizontal split-case centrifugal fire pump
Flow Rate: 500–5000 GPM (model dependent)
Pressure: 50–250 PSI
Drive Options: Electric motor or diesel engine
Construction: Cast iron pump casing with bronze or stainless steel impellers
Connections: Flanged suction and discharge
Compliance: NFPA 20, UL/ULC listed components
Operation: Automatic or manual via fire pump controller
Maintenance: Easy access to internal components without disturbing piping
Features and Benefits
High Hydraulic Efficiency: Optimized impeller design for maximum water flow
Durable Construction: Corrosion-resistant materials for long service life
Easy Maintenance: Split-case design allows quick inspection and repair
Reliable Fire Protection: Ensures consistent water supply in emergencies
Versatile Drive Options: Compatible with electric or diesel engines
Compliance: Meets NFPA 20 and UL standards for fire safety
Flexible Installation: Suitable for indoor and outdoor applications
